Evoloop® M35
Evoloop® M35 contains cobalt for increased hot hardness. The composition of Evoloop® M35 offers a good combination of toughness and hardness. Evoloop® M35 has a good machinability.
Chemical composition
| C | Cr | Mo | W | Co | V |
|---|---|---|---|---|---|
| 0.93 | 4.2 | 5.0 | 6.4 | 4.8 | 1.8 |
Standards
- Europe : HS 6-5-2-5
- Sweden : SS 2723
- Germany : 1.3243
- USA : AISI M35
Properties
Machinability
Wear Resistance
Toughness
Hot hardness
Grindability

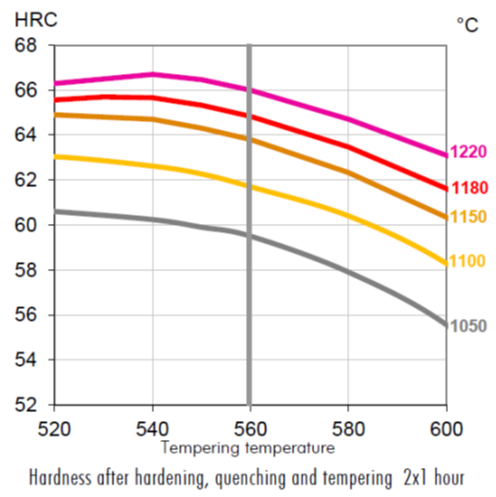

Heat treatment
Delivered Hardness
- Soft annealed : 260 HB
- Cold drawn : 285 HB
- Cold rolled : 285 HB
Characteristics
Evoloop® M35 can be worked as follows:
- machining (grinding, turning, milling)
- polishing
- hot forming
- electrical discharge machining
- welding (special procedure including preheating and filler materials of base material composition).
Applications
-
-
-
Round bars Ø 0.6 to 410 mm
-
Strips test
